TTK has been manufacturing protectivematerial and apparel for over 20 years.
Product Profile
Electrothermal exchange refrigeration technology,N95 positive pressure high eficiency filtrationisolate the virus invasion at the collar and cuff,improve the level of protective clothing,positive pressure in protective clothing,fresh air circulation,safe and comfortable
The equipment can be paired with 24V25AH lithium battery and can work continuously for two hours without power supply.


Design concept
Portable Refrigeration Technology
Portable refrigeration instrument is an instrument that uses the principle of chip refrigeration to achieve refrigeration effect.
Chip cooling uses the Peltier effect (Pettier Effect), on both sides of the doped P and N materials
With the addition of voltage, heat energy will be transmitted from the -side of the material to the other -side at the same time. Make the -side cool and the other -side warm.
Help medical staff in epidemic prevention work
In hot summer, medical workers need to wear protective clothing to work outdoors.
There is no refrigeration equipment such as air conditioners outside, which makes the working environment of medical workers extremely difficult.
to a good cooling method. Portable protective clothing air conditioners are designed to address current outdoor healthcare workers
problem of hot working environment.

Equipment characteristics
Filter device
High-efficiency filter membrane, the filtration efficiency of oily and non-oily particles is greater than 99.99%
Air supply device
Air supply range 60-120L/min, wind speed can be adjusted Continuous working time:
The power adapter can work continuously for a long time (6m radius range), powered by lithium battery
Just pressure
Ensure continuous positive pressure throughout the protective suit
Cooling efficiency
Using semiconductor refrigeration technology, the cooling power is 300W, which can reduce 5-8 degrees in the protective clothing, and continuously circulate fresh air.
Provides comfort to the wearer's body. Powered by 24V safe voltage to ensure the safety of mobile workers
Scope of application
Hospital secondary protection, tertiary protection (used in conjunction with protective clothing), such as fever clinics, operating rooms,Department of Anesthesiology, Department of Infectious Diseases, throat swab sampling, etc.; airports, high-speed rail stations, docks, stations during the epidemic When waiting on duty; emergency emergency health protection; filtering particulate matter in the air, blocking droplets, blood Fluids, body fluids, secretions, etc.

Sterilization process
1.After the person wearing protective clothing removes the latex gloves and waterproof rubber boots according to the correct procedure,Carefully remove the protective clothing refrigeration equipment and place it in the refrigeration equipment system-After transferring the box, after sealing the transfer box, continue to be careful according to the procedure of wearing and taking off protection.Take off the medical disposable protective clothing by rolling it from the inside out, and place it in the harmful garbage disposal box
2.By specialized operators (wear protective clothing), after the disinfection operation The space is concentrated to sterilize the protective clothing refrigeration equipment, and take it out carefully.The shell is sprayed with 75% alcohol and wiped to disinfect;
3.After the surface sterilization treatment is completed, the special N95 empty filters need to be replaced one by one.After the surface sterilization treatment is completed, the equipment is turned on with 75% alcohol to clean the air inlet position.Set up spraying, start the machine and run for 1 minute to sterilize the inside of the equipment.

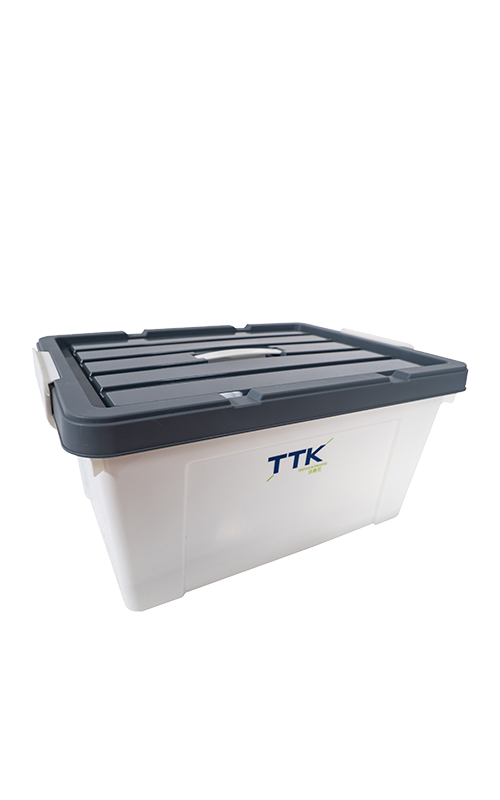

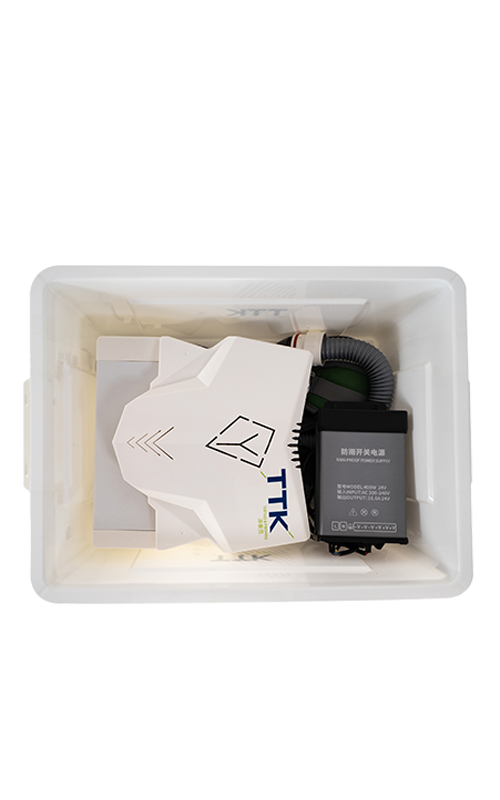

4.After the above sterilization process is completed, stand aside for 10 minutes,Before placing the refrigeration equipment in the sterilized storage box,for the next use.

Technical parameter

Filtration

high-efficiency filter membrane oily and non-oily particle filtration effect is 99%

Air supply

Air supply volume 60-120L/min, wind speed can be adjusted

Positive pressure

continuous positive pressure throughout the protective suit

Refrigeration

Effectively reduce the internal temperature of protective clothing by 5-8 degrees, and continuously circulate fresh air

Power consumption

Lithium battery can supply power for 2-4 hours, with 24V power adapter

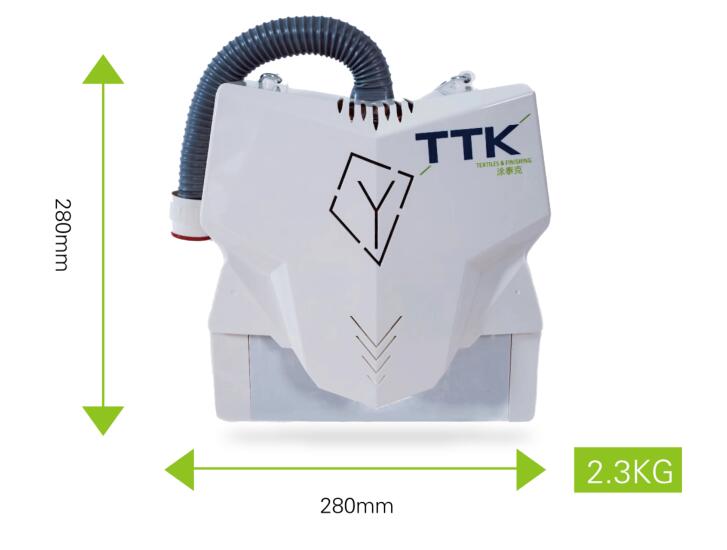

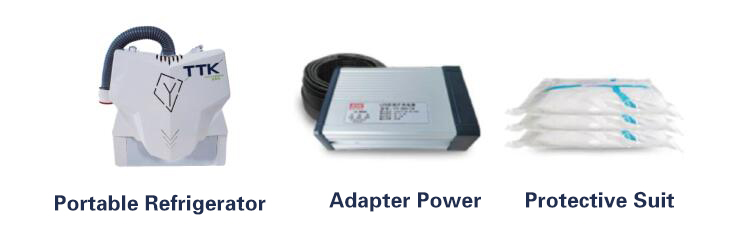

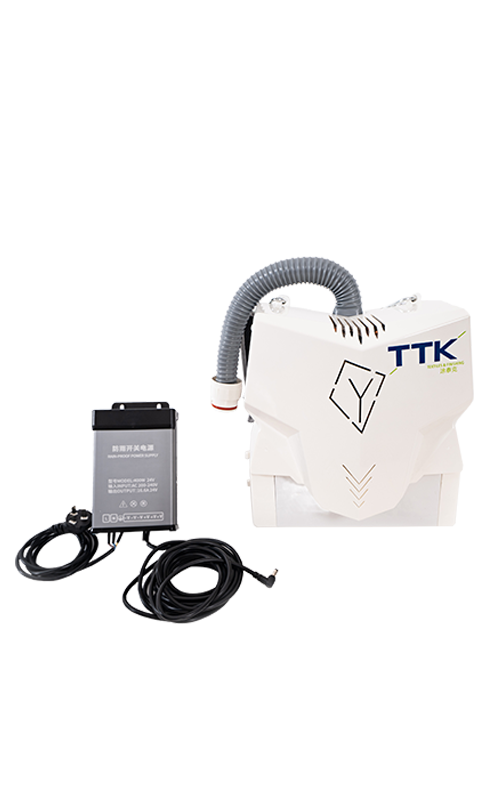

Dimensions and list



Manual

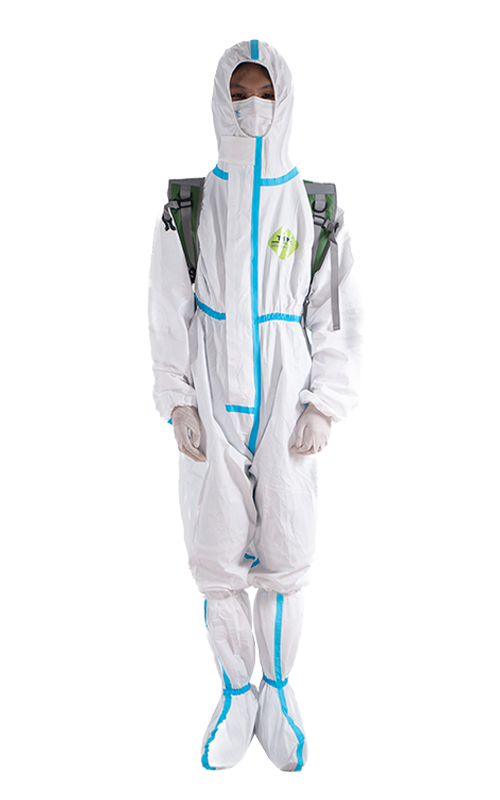

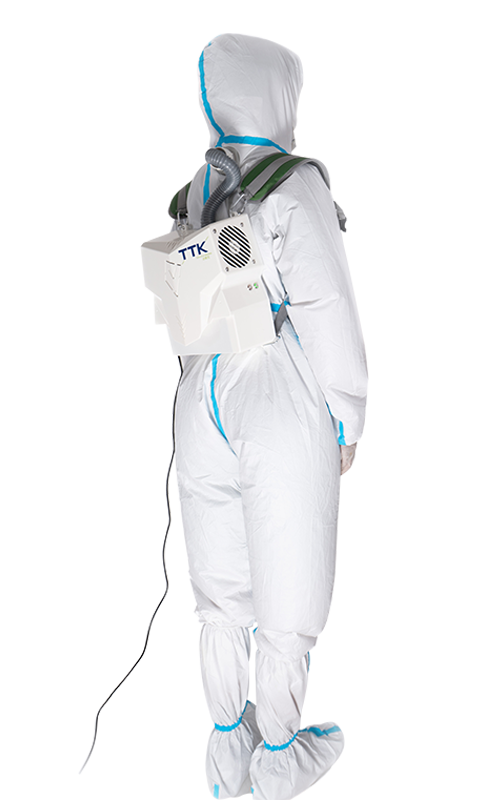

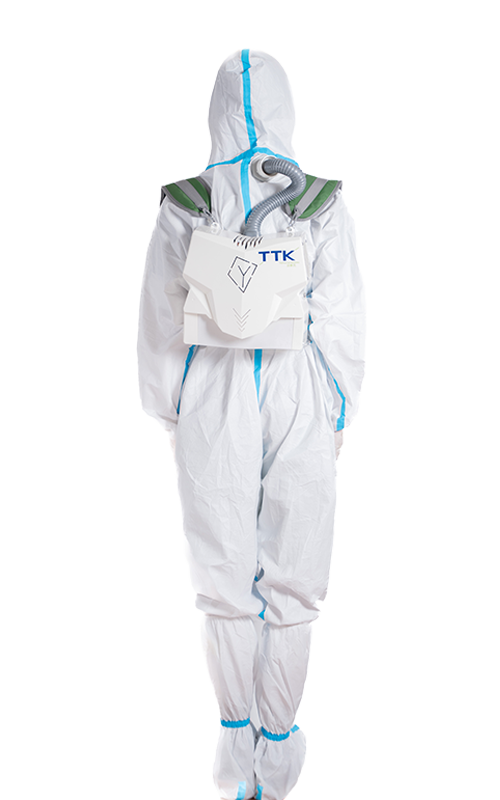

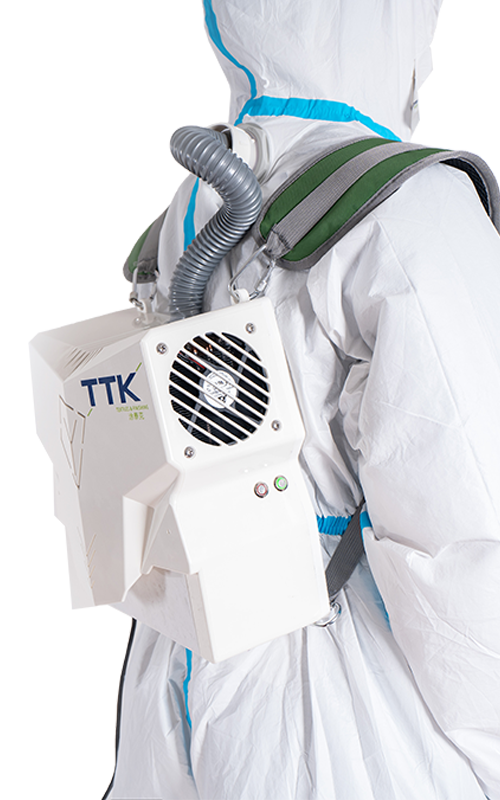

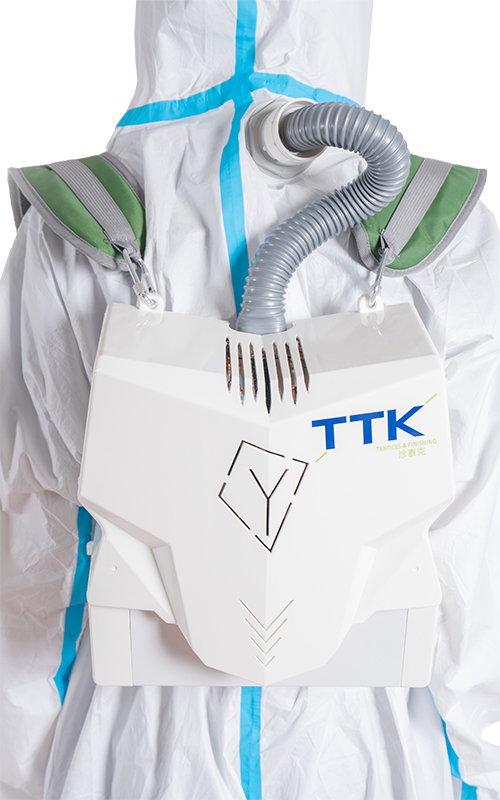

Check the integrity of the protective clothing, and use a special drilling tool to make holes in the protective clothing.Wear protective clothing and air conditioning as shown on the right.After checking the air tightness, adjust the elastic band to fit the body size.Wear medical gloves.Press the power button to cool down.
Precautions
Open the package after hand cleaning and disinfection, and pay attention to hand hygiene throughout the process.
Pay attention to check the air tightness of each part.
Do not spray water on the protective clothing air conditioner. After splashing water, it needs to be dried before use.
The air conditioning and refrigeration instrument wiring is in cooling mode, and the lithium battery power supply state is in air supply mode.
